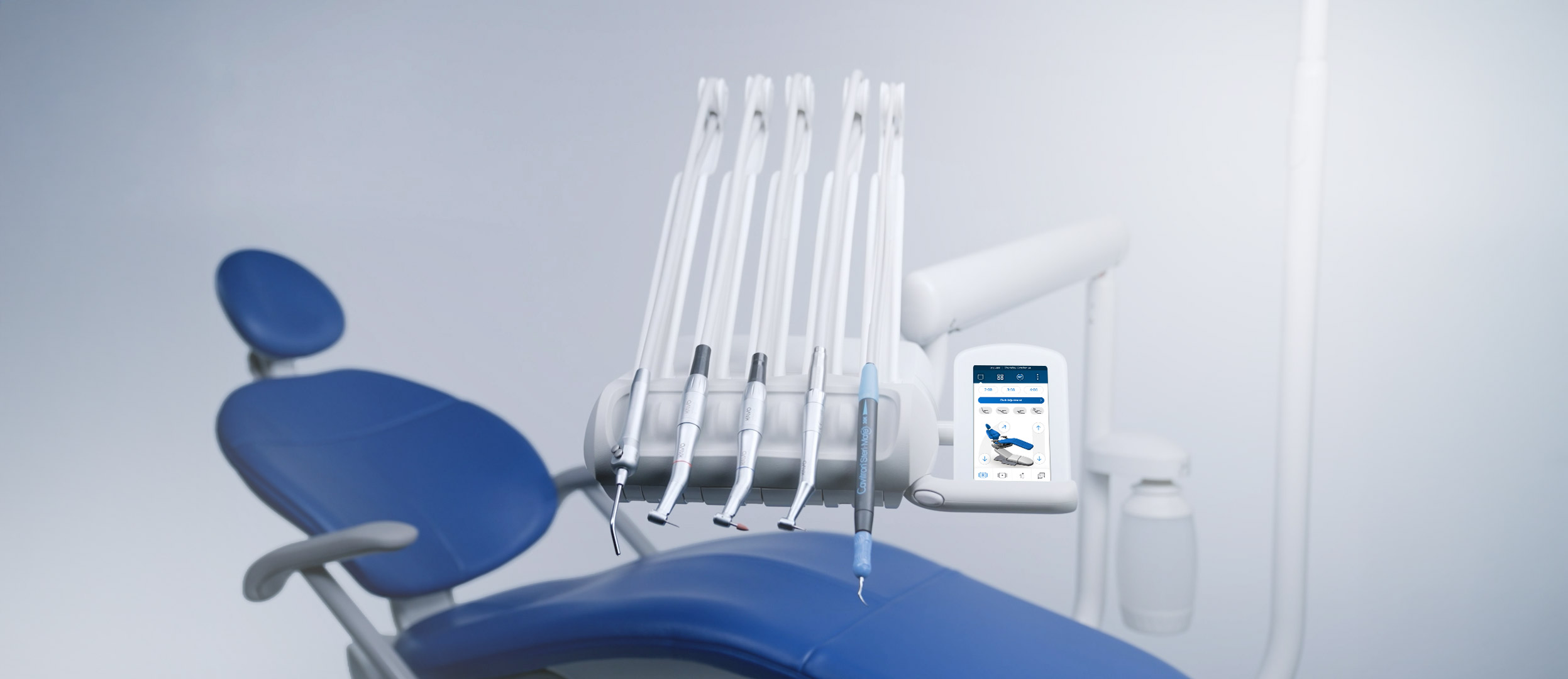

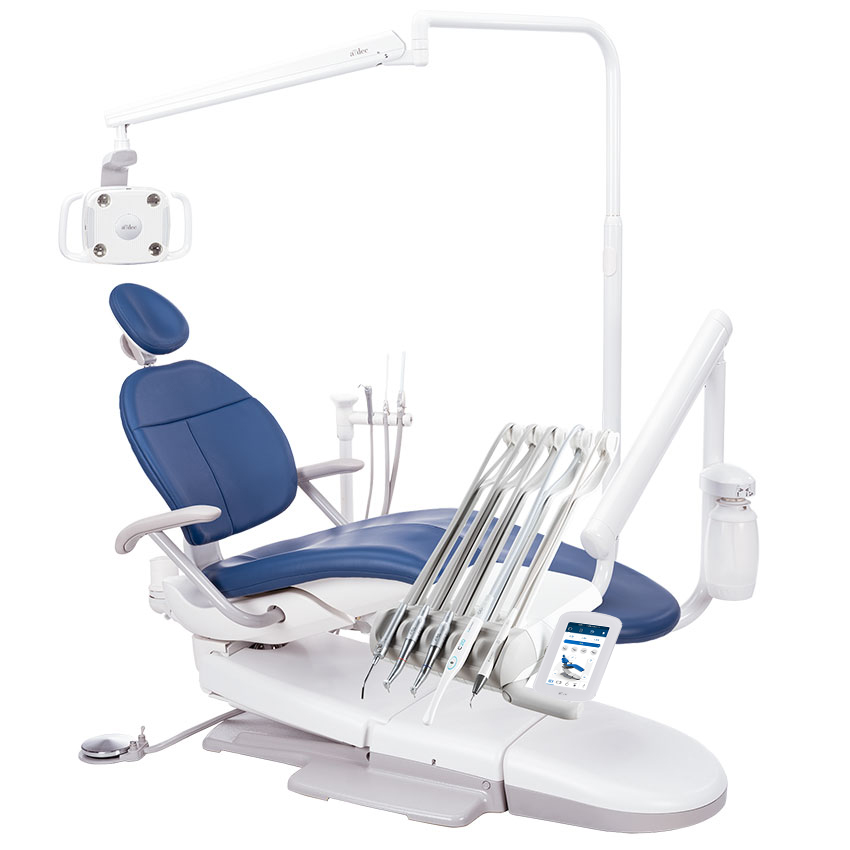

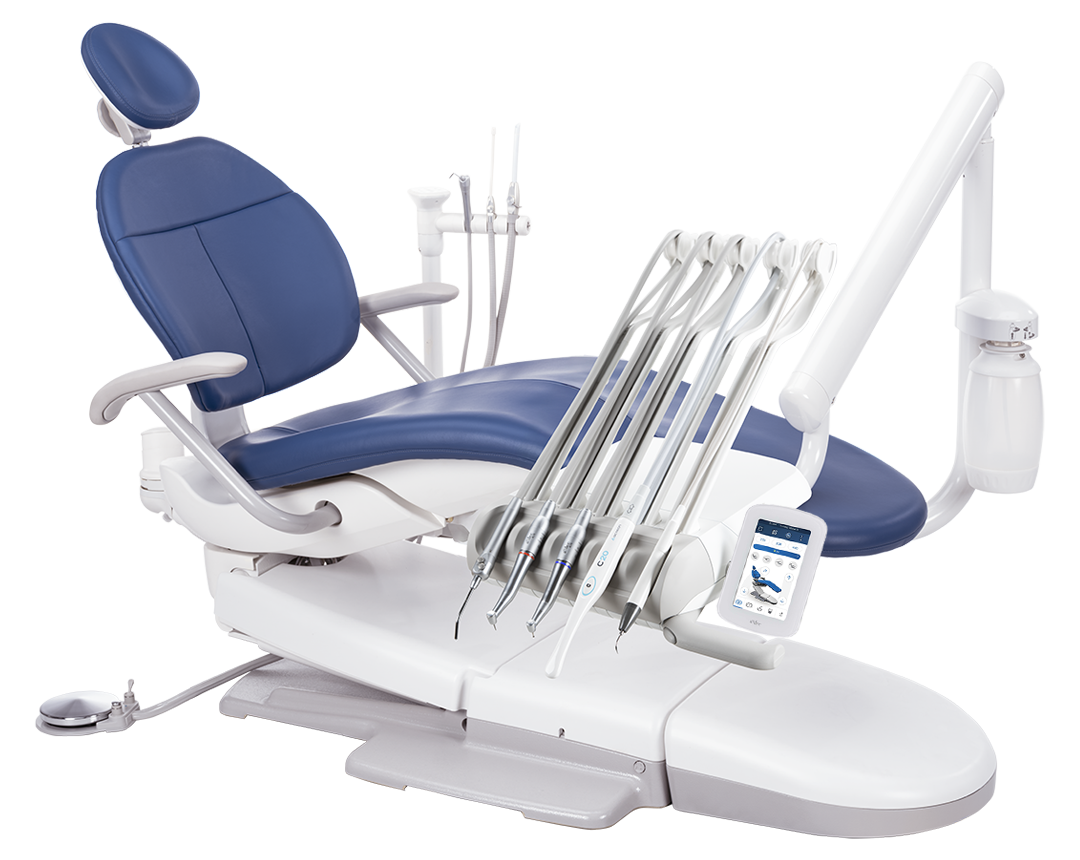

A‑dec 300 Pro Delivery Systems
Fits today. Flexible tomorrow.
Everything you want in your equipment. And more.
More functionality. More versatility. More forward-thinking design. We started with a modular, compact design and made it even better.
Enabled with A‑dec+ connectivity, expanded integration options and responsive, intuitive control, the A‑dec 300 Pro offers all the powerful performance you need for the way you practice today. With more possibilities for tomorrow.

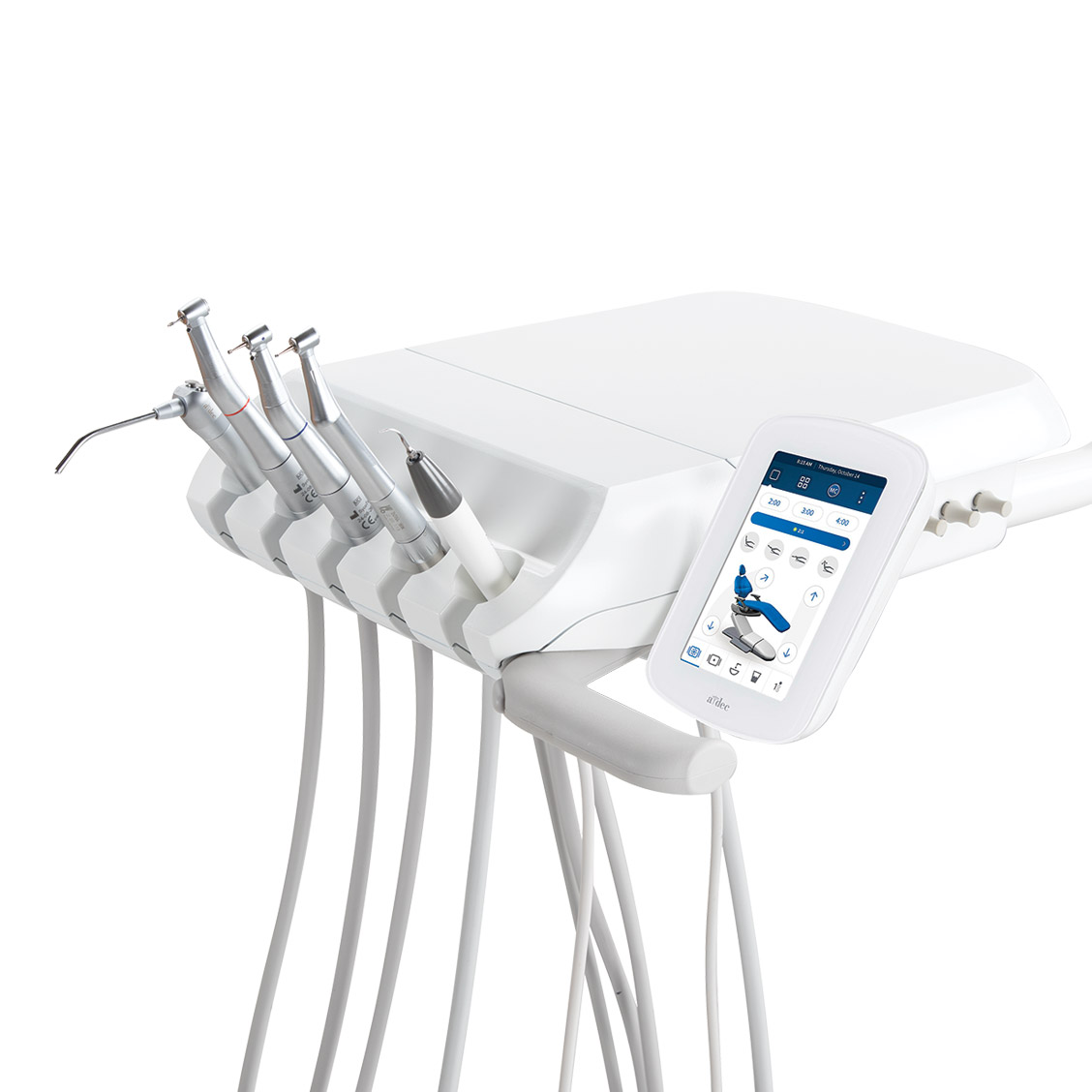

Evolved
Enhanced features make working more comfortable and intuitive, to support a growing skillset.

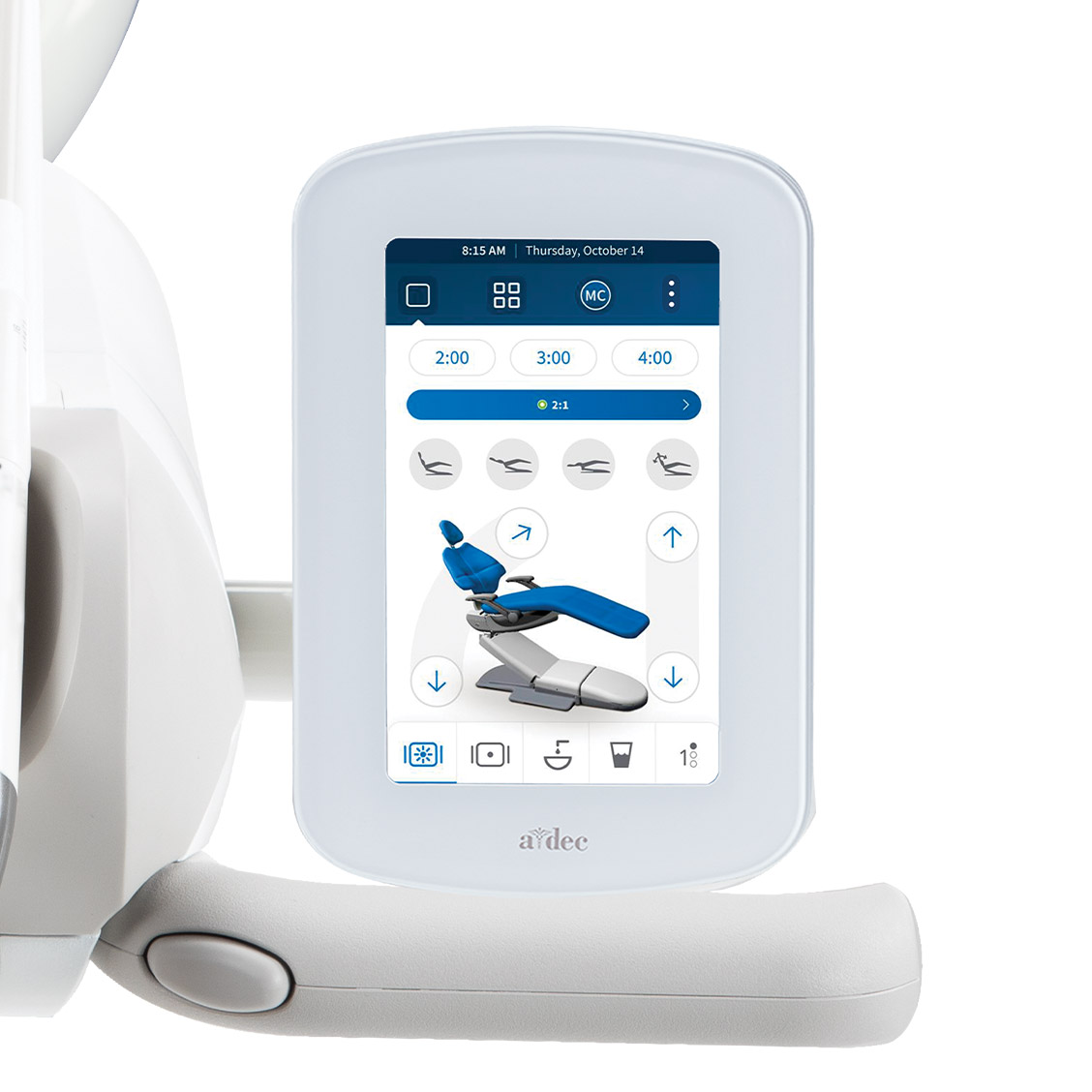

Connected
An updatable software-based platform brings new technology to help grow and futureproof your practice.

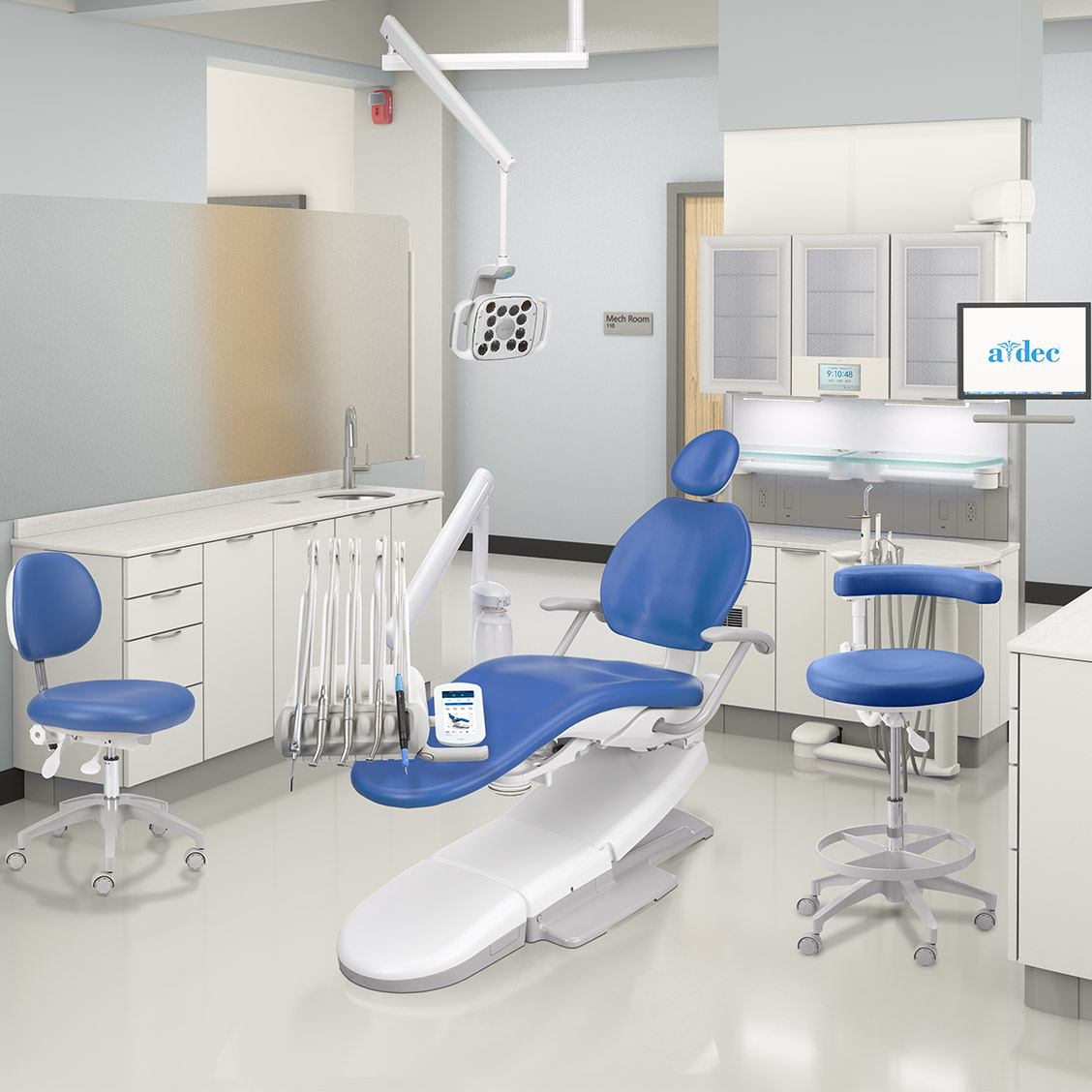

Accessible
Close-in to your patient, everything you need is within natural reach, reducing pain and strain.

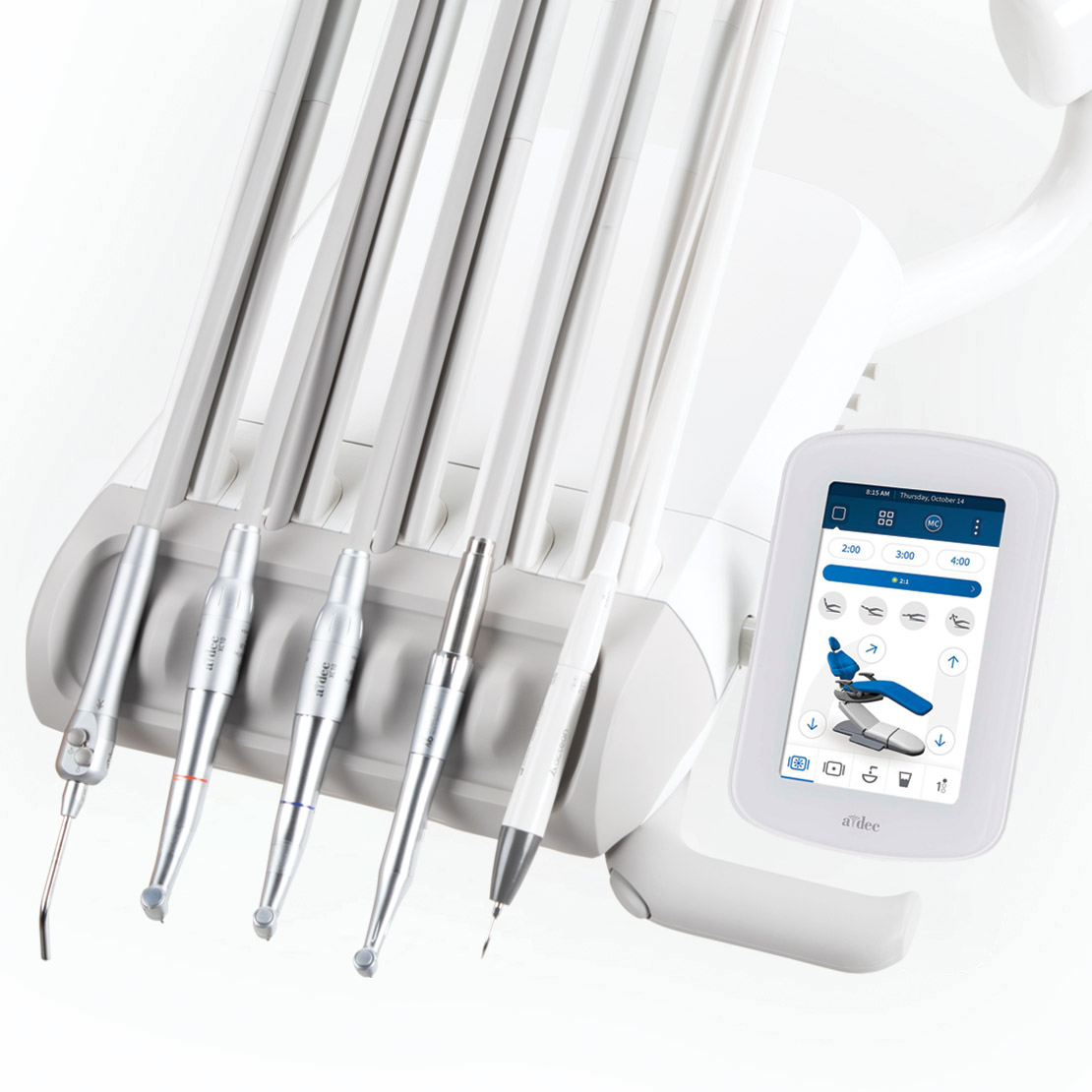

Flexible
Configure your system for the way you practice today—and add more capabilities in the future.
Ready to learn more?
Talk to our experts. Your A‑dec Territory Manager is here to answer your questions and ensure you get the best solution for your dental practice.
A-dec 300 Pro delivery system features
Dental delivery system choices
Support center

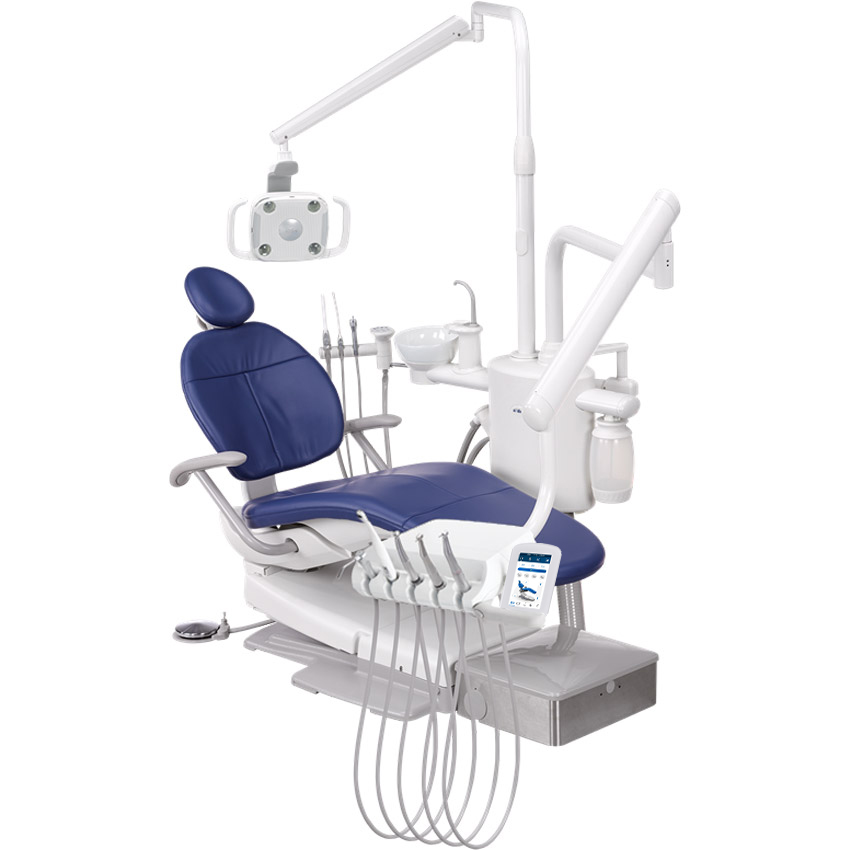

Mounts to most current and legacy A‑dec dental chairs—and chairs from other manufacturers.
All Around Ergonomic Comfort

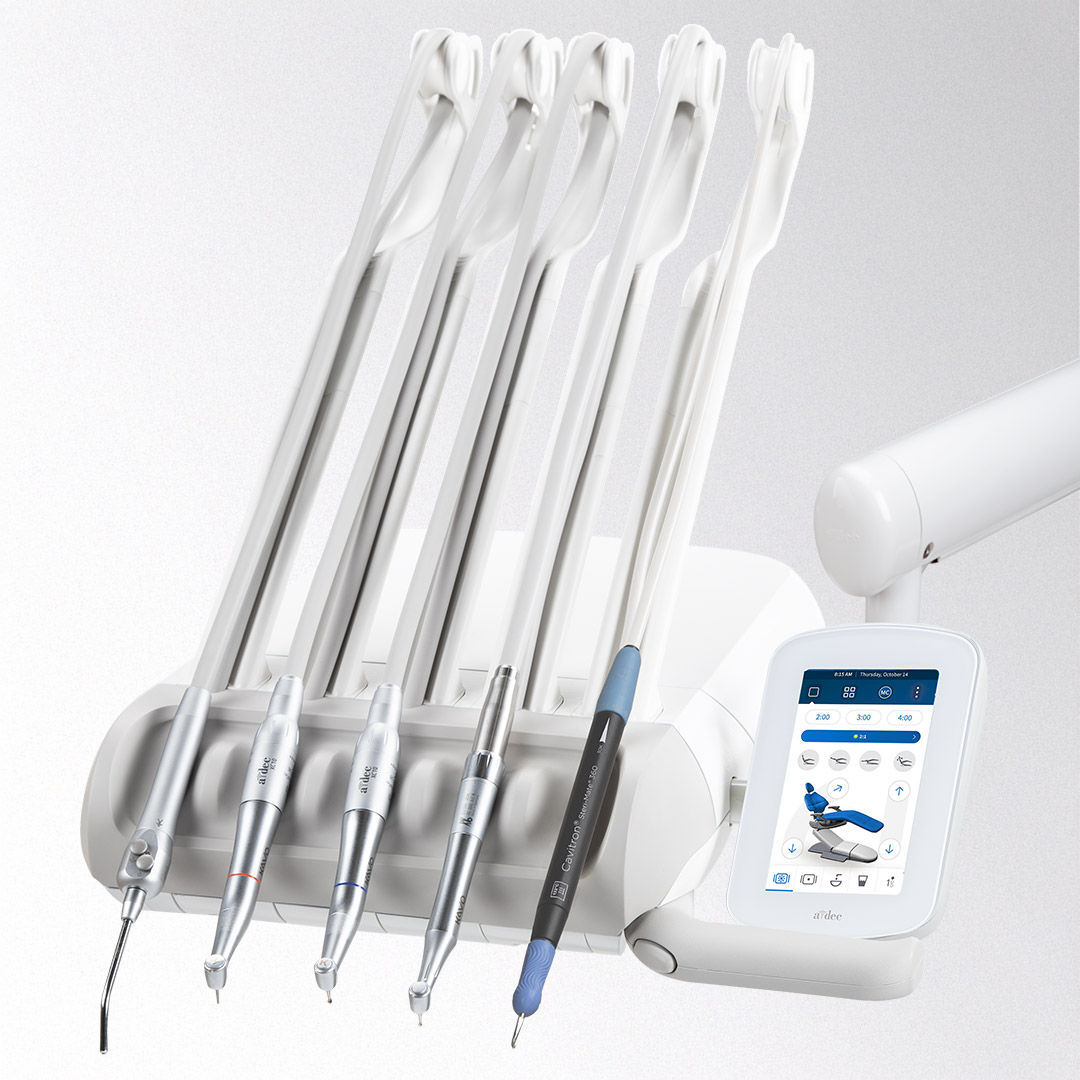

Upgrade to Continental
Get unsurpassed ergonomics. Handpieces—even electrics—feel light. Eliminates pull-back on the handpiece resulting in less fatigue. Easily retrieve and return handpieces and other instruments without taking your focus away from the oral cavity.
Available on Radius and support mounted systems.

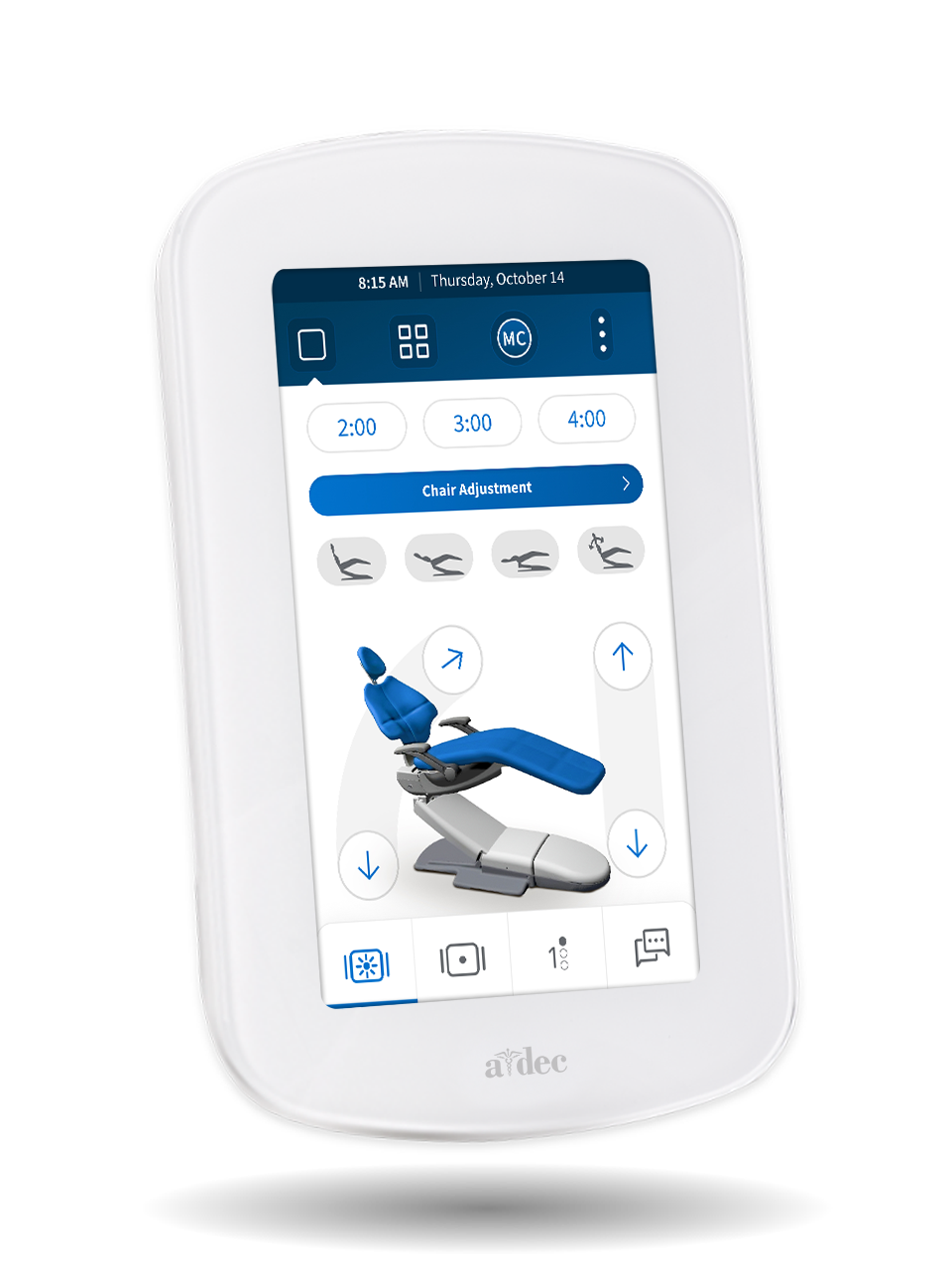

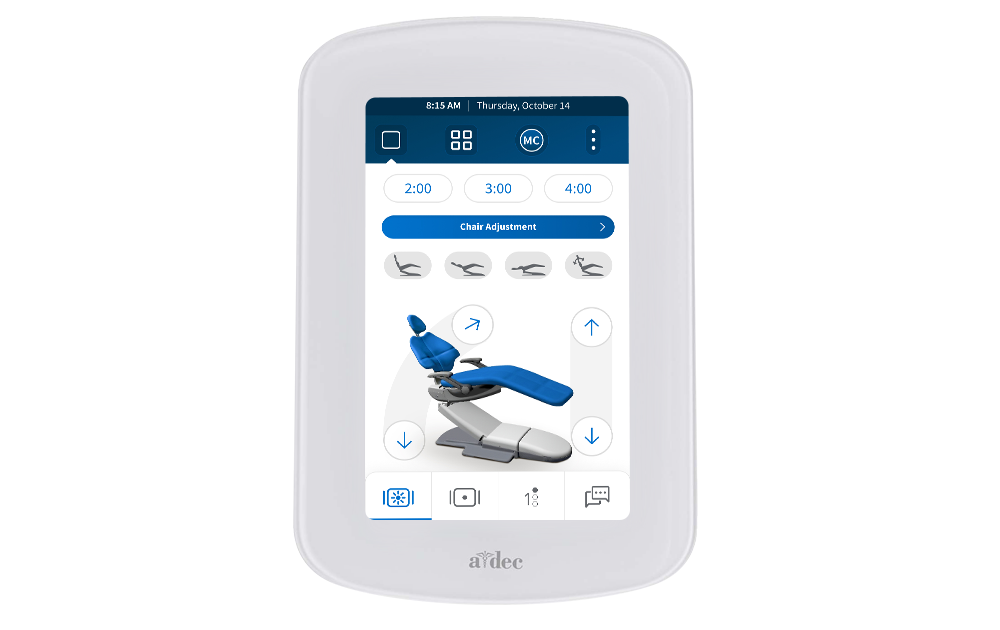

Introducing the Dynamic Screen 5
The Dynamic Screen 5 (DS5) features an easy-to-view 5” glass touchscreen that feels so intuitive, it's almost like having your smartphone in the operatory. The DS5 displays only the information you need for the procedure at hand. And it's connected to the A‑dec+ software platform for ongoing access to evolving technology.
DS5 integrated features
The DS5 touchscreen supports a wide variety of dentistry workflows.
And A‑dec+ enables you to add more as new solutions emerge.

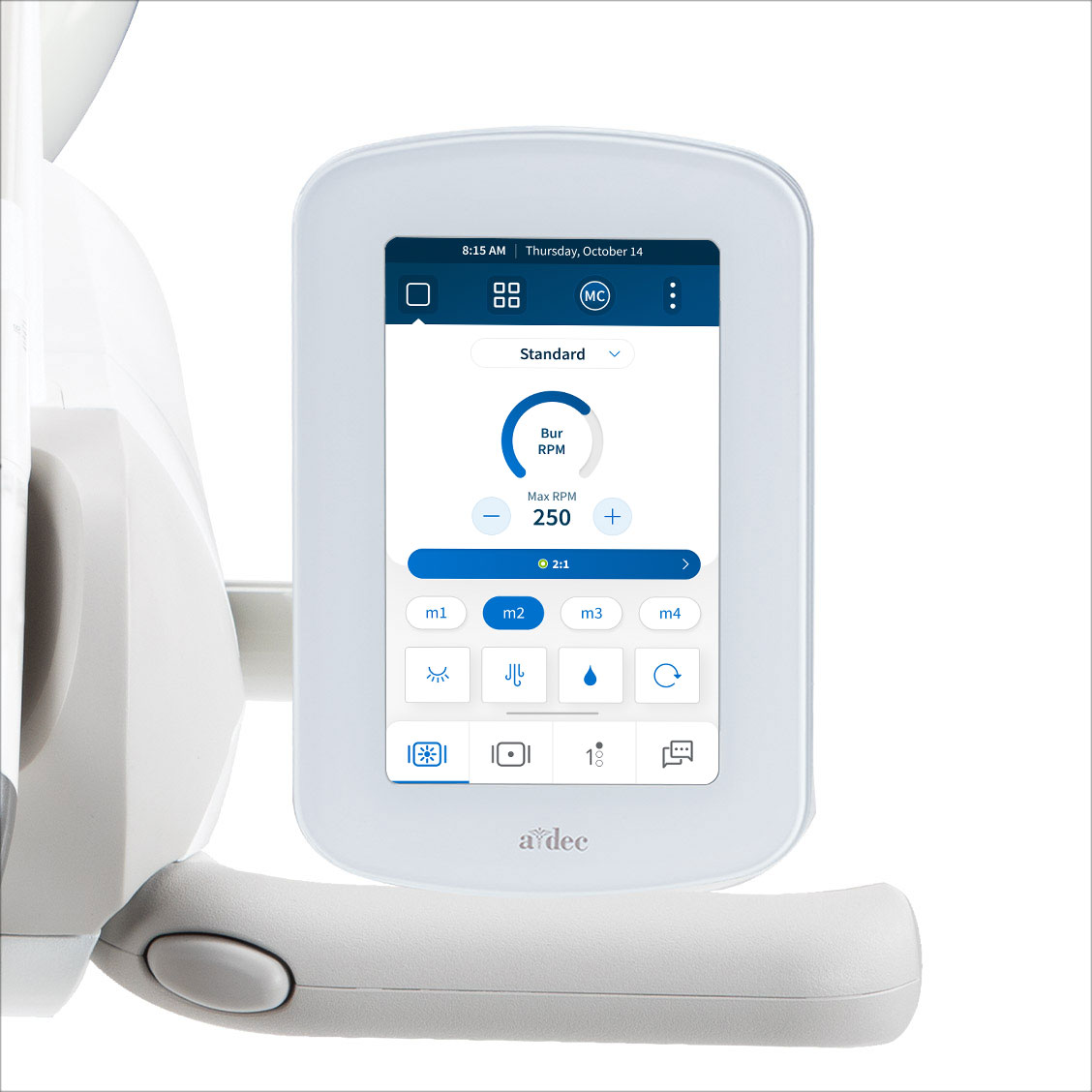

Restorative
Deliver high-quality restorative care with the help of a simple, versatile interface for maximum efficiency.
- Intuitive controls — The DS5 touchscreen shows only the information you need, when you need it.
- Customizable presets — Move effortlessly between procedures and carry your settings across multiple operatories.

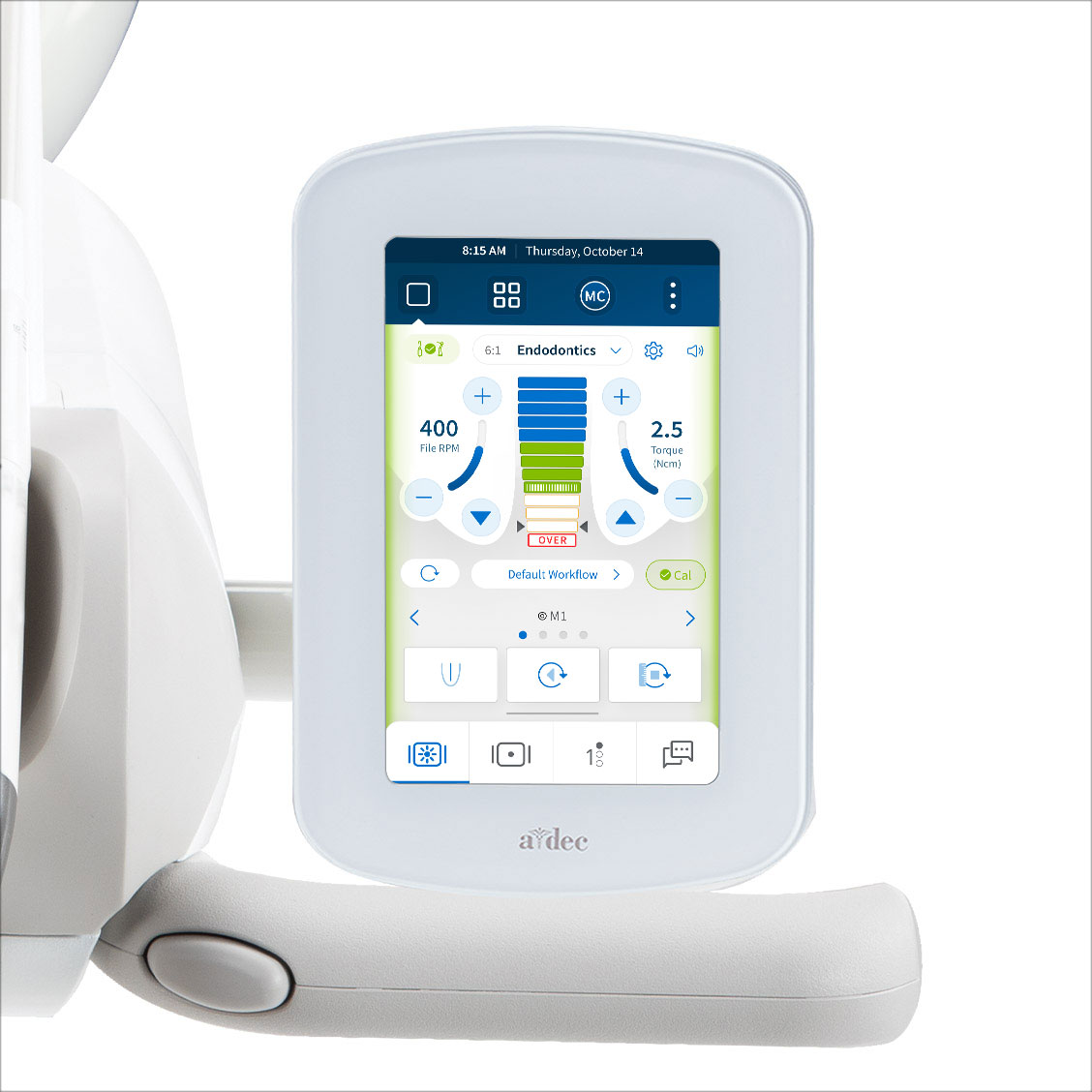

Endodontics
Add basic or advanced endodontics to grow your practice without expanding your footprint.*
- Rotary and reciprocating modes — The versatility you need to work the way you want.
- Integrated apex locator — Whether using a hand file or the Midwest motor and handpiece, on-screen visuals and real-time audio guidance help you navigate root canals with confidence.
- Adaptive motor response — With a user-defined target depth setting, the system automatically activates auto-stop or auto-forward the instant your goal is reached.
- File libraries — Seamlessly integrate Dentsply Sirona’s trusted WaveOne® and Reciproc™ file technologies into your workflow.
*Capabilities vary by integrated option.

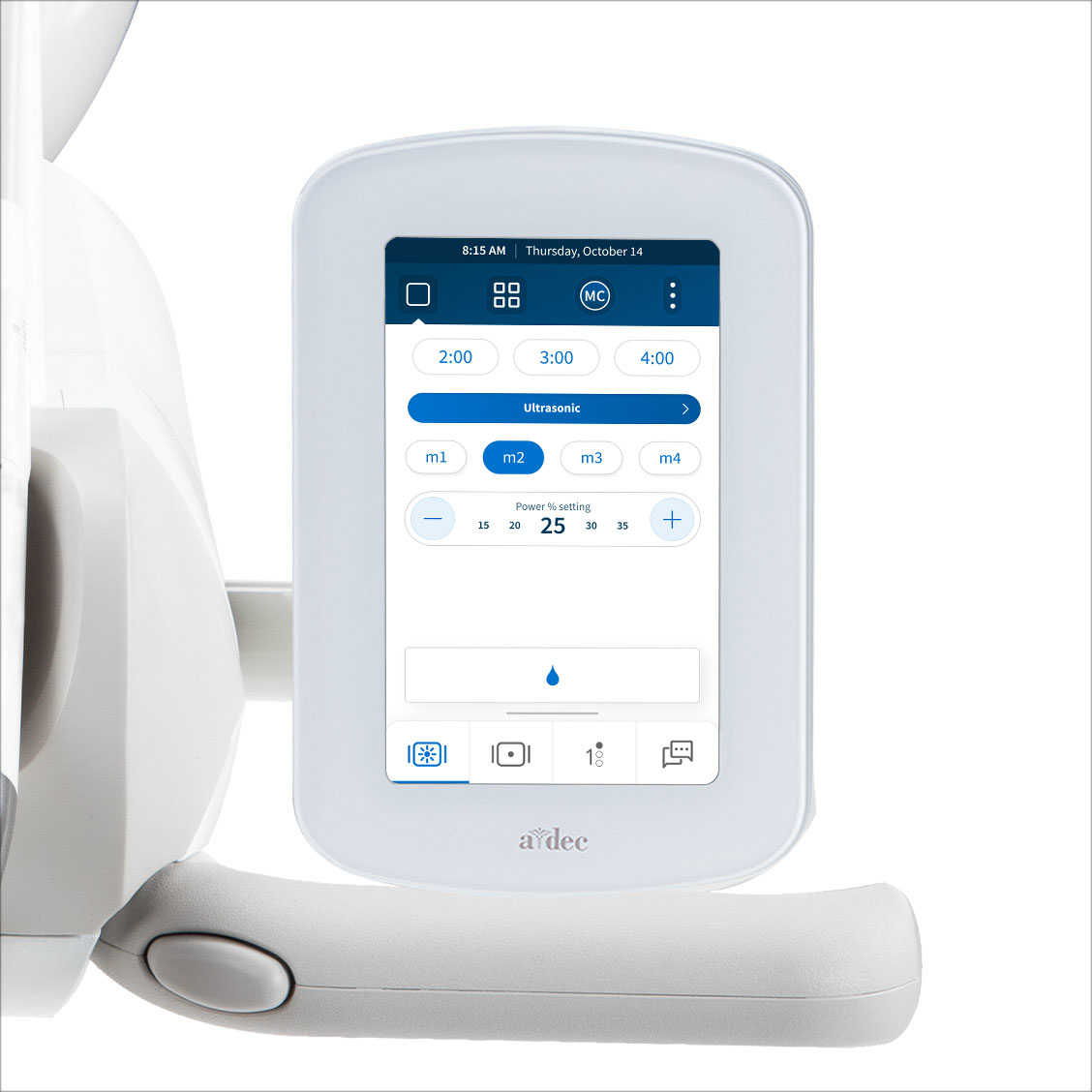

Hygiene scaler
Simple, intuitive controls for ultrasonic scalers keep your workspace organized and your focus where it belongs: on the patient.
- Seamless integration — Eliminate clutter and bring essential hygiene tools directly to your delivery system.
- Customizable presets — Easily bring your user-defined settings from operatory to operatory.
- Consistent performance — Enable routine prophylaxis and periodontal therapy from one system.

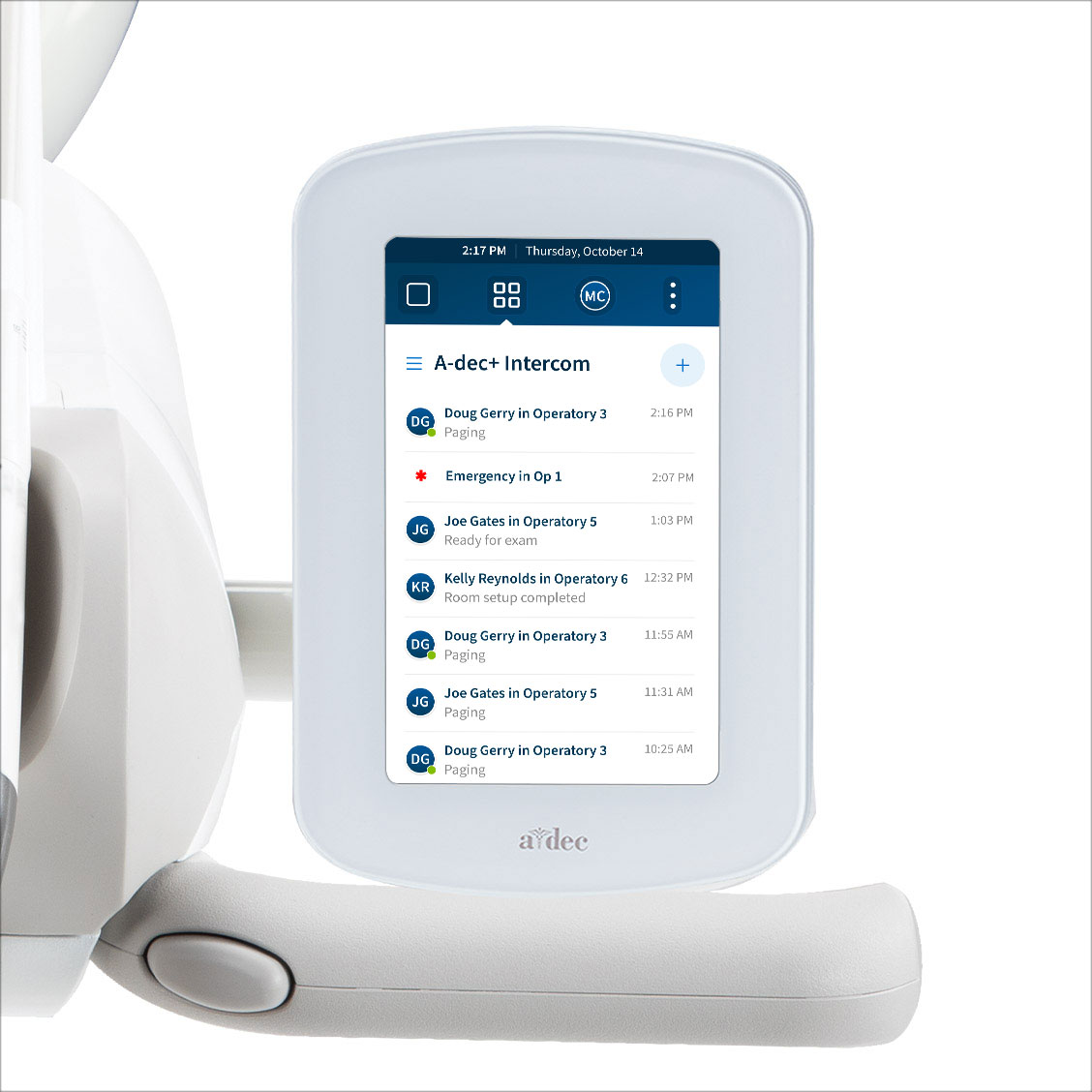

A‑dec+ Intercom app
The A‑dec+ Intercom app allows for discreet, instant communication between team members.
- Quick messaging — Send and reply to messages from any A‑dec+ enabled delivery system in your dental office.
- Custom alerts — Options for audio alerts and Do Not Disturb mode.
- Notifications — Pop-up alerts and notification badges help ensure messages aren't missed.
An option for every operatory
Choose the delivery system control interface that best suits your practice and use cases.
DS5 touchscreen
- Best choice for endodontics and general restorative
- 5" capacitive glass touchscreen
- Built-in A‑dec+ connectivity
- Endodontics: rotary, reciprocating, and advanced
- Electric handpiece integration
- A‑dec+ Intercom messaging app
- Multi-user configurable presets

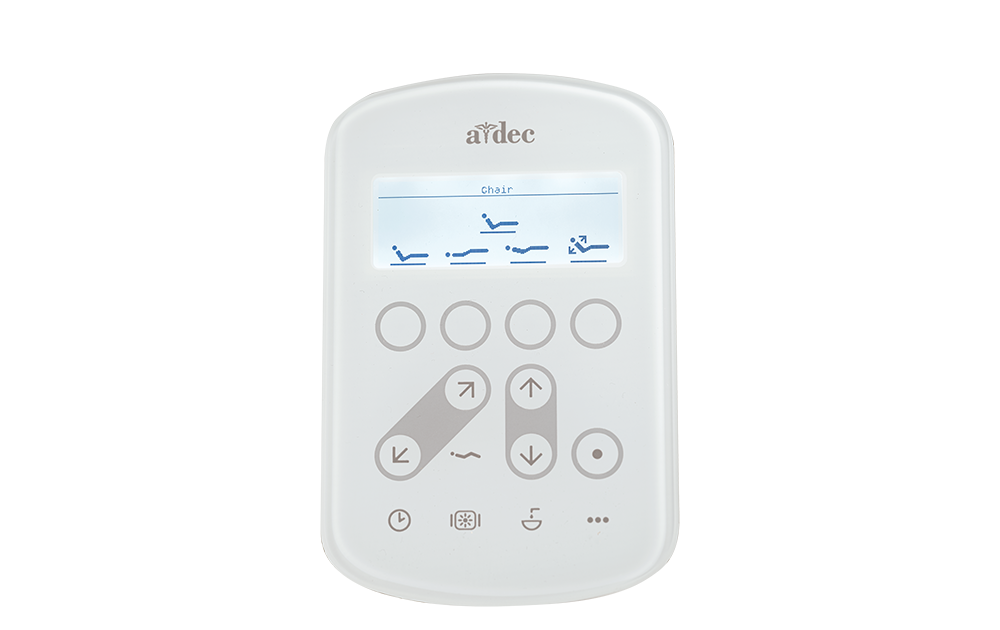

CP5/CP5i touchpad
- Great for general restorative and hygiene
- Smooth, impact-resistant glass touchpad
- Optional connectivity with A‑dec+ Gateway
- Endodontics: rotary and reciprocating
- Electric handpiece integration (CP5i only)
- A‑dec+ Intercom messaging app
- Multi-user configurable presets
Handpieces, motors, and more
Integrate premier clinical and diagnostic devices directly into your delivery system.
Foot control options

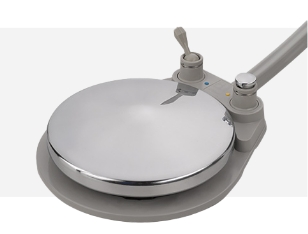

A-dec 300 wet/dry disc foot control
Modulates variable speed with foot pressure from any position. Optional chip blower/accessory button available.

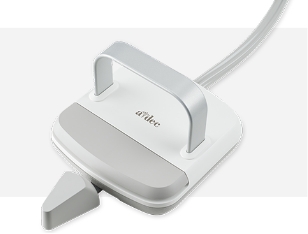

Lever foot control
A slight, natural shift of the foot delivers precise modulation of your handpiece speed. Intuitively switch between wet and dry cuts with your eyes still on patient.
Specifications
Compare A‑dec delivery systems

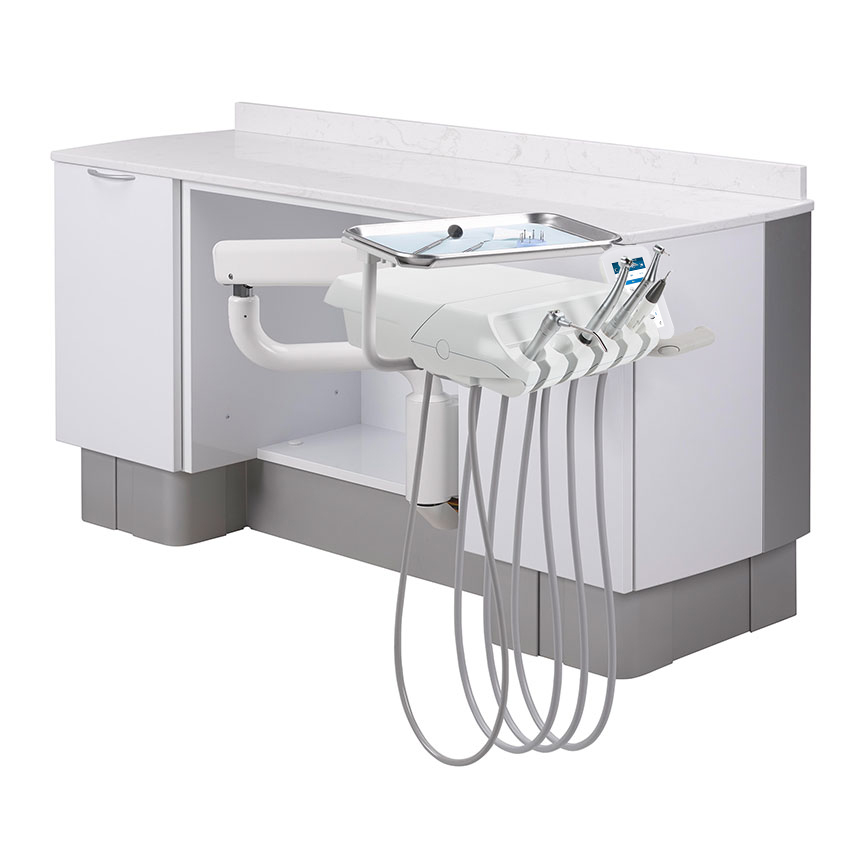

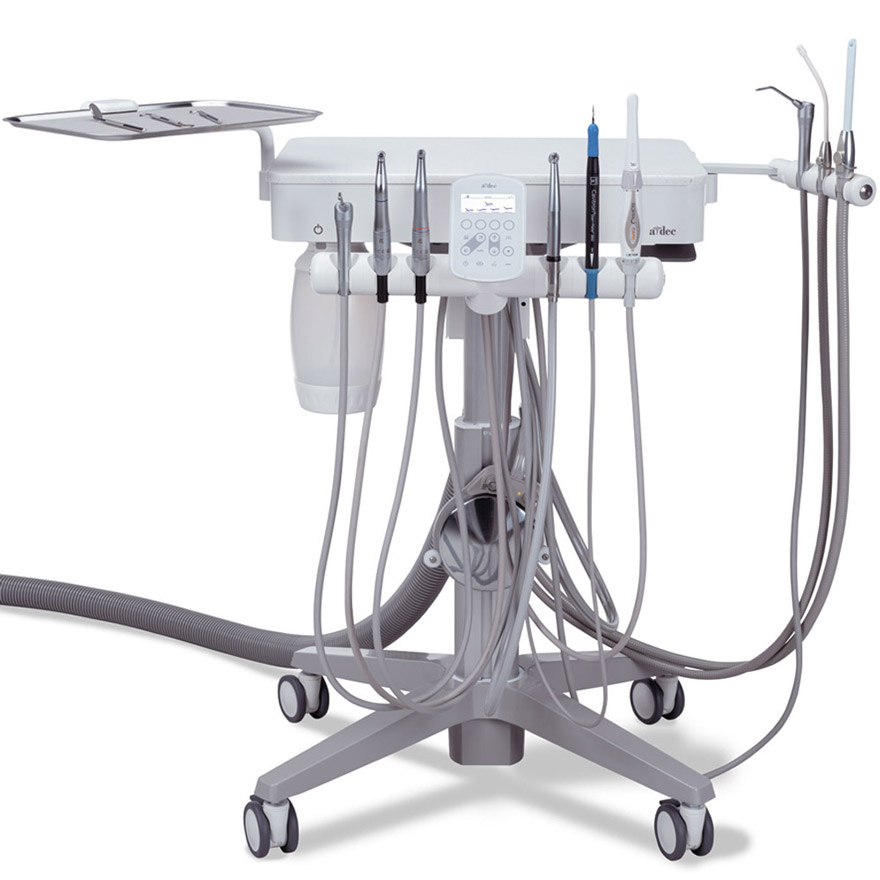

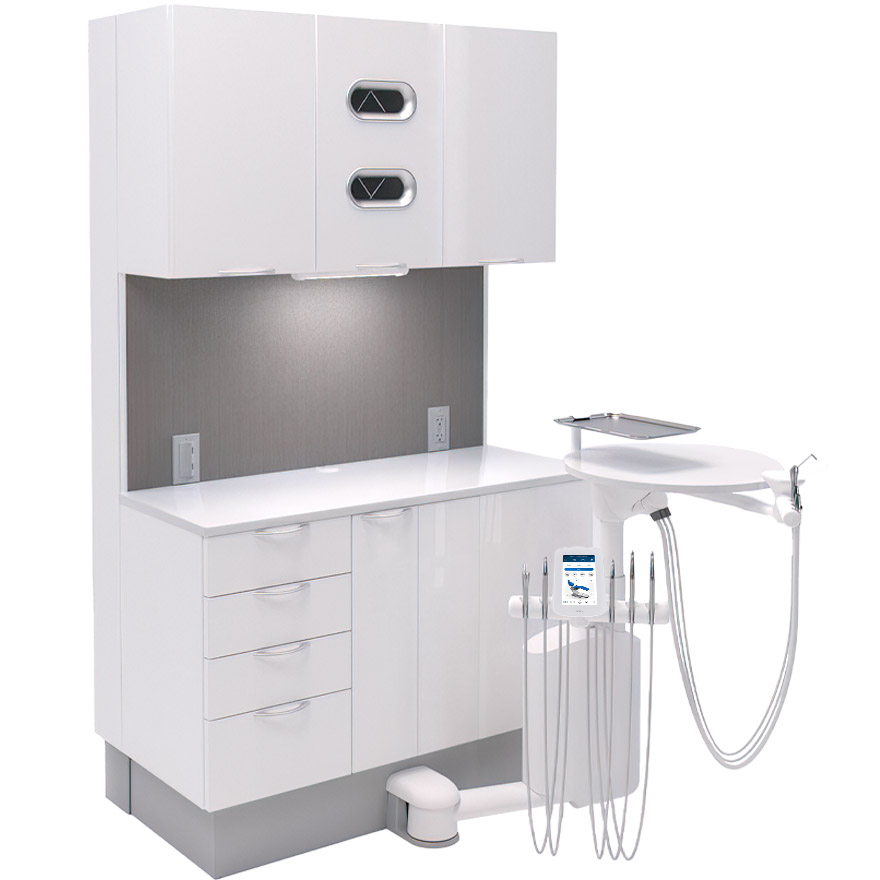

| A‑dec 300 Pro delivery systems | Radius | Support center | Side | 12 o'clock duo | Cart |
|---|---|---|---|---|---|
| Mount options | A‑dec 311, 411 or 511 dental chair | A‑dec 362 support center | A‑dec Inspire cabinet or wall mount | A‑dec Inspire cabinet or standalone | Standalone cart |
| Continental style available | Yes | Yes | No | No | No |
| Arm system | Balanced flexarm with air brake or manual height adjustment | Balanced flexarm with air brake | Balanced flexarm without air brake | Independent manual height adjustment for doctor's controls and assistant's worksurface | Manual height adjustment for worksurface and controls |
| Ancillary accommodation | Up to 3 | Up to 3 | Up to 3 | Up to 3 | Up to 3 |
| Control block | 3- or 4-position | 3- or 4-position | 3- or 4-position | 3- or 4-position | 3- or 4-position |
| Handpiece holder positions | 4 + syringe | 4 + syringe | 4 + syringe | 4 + syringe | 4 + syringe + blank |
| Integrated saliva ejector | Optional on A‑dec 336pro only | N/A | N/A | N/A | N/A |
| Left/right conversion | Yes | No | No | Yes | Yes |
| Brake handle(s) | 1 (standard) or 2 (optional) | 1 (standard) or 2 (optional) | 1 | N/A | N/A |
| User interface | DS5 touchscreen, CP5 or CP5i control pad, or none |
DS5 touchscreen, CP5 or CP5i control pad, or none |
DS5 touchscreen, CP5 or CP5i control pad, or none |
DS5 touchscreen, CP5 or CP5i control pad, or none |
DS5 touchscreen, CP5 or CP5i control pad, or none |
| Software updatable | With DS5 touchscreen or A‑dec+ Gateway | With DS5 touchscreen or A‑dec+ Gateway | With DS5 touchscreen or A‑dec+ Gateway | With DS5 touchscreen or A‑dec+ Gateway | With DS5 touchscreen or A‑dec+ Gateway |
| Water coolant vaporizer | Optional | Optional | Optional | Optional | Optional |
| Quad-voltage intraoral light source | Optional | Optional | Optional | Optional | Optional |
| Integration | 15' (4.5 m) USB 2.0 cable | 15' (4.5 m) USB 2.0 cable | 15' (4.5 m) USB 2.0 cable | 15' (4.5 m) USB 2.0 cable | 15' (4.5 m) USB 2.0 cable |
| Powered USB hub | Optional | Optional | Optional | Optional | Optional |
| USB redriver | Optional | Optional | Optional | Optional | Optional |
| Foot control | Wet/dry disc (with or without chip blower) or lever foot control | Wet/dry disc (with or without chip blower) or lever foot control | Wet/dry disc (with or without chip blower) or lever foot control | Wet/dry disc (with or without chip blower) or lever foot control | Wet/dry disc (with or without chip blower) |
| Air and water quick disconnect | No | No | No | Optional | Optional |
| 120 VAC duplex outlet | No | No | No | No | Optional |
A-dec 300 assistant's instrumentation
Place your assistant's clinical devices right where they're needed most, with adjustable 3- or 4-position holders. Optional EasyFlex vacuum tubing reduces hand and wrist fatigue.

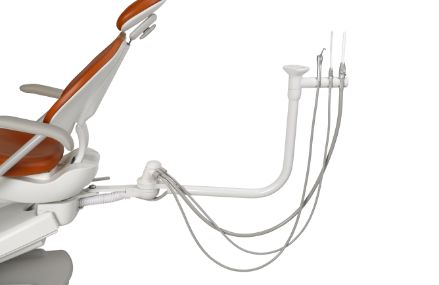

Radius assistant's instrumentation
Rotates around the back of the chair to accommodate both left- and right-handed operators. Mounts to A‑dec 500, A‑dec 400, and A‑dec 300 chairs.

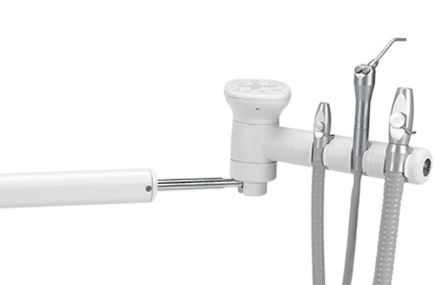

Telescoping assistant's instrumentation
Allows comfortable access to vacuum instruments when working with, or without, an assistant. Mounts to the A‑dec 300 support center.

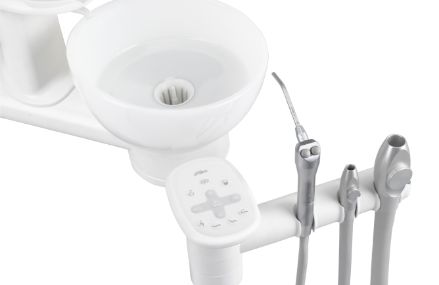

Fixed position assistant's instrumentation
Provides convenient instrument positioning mounted on the cuspidor.

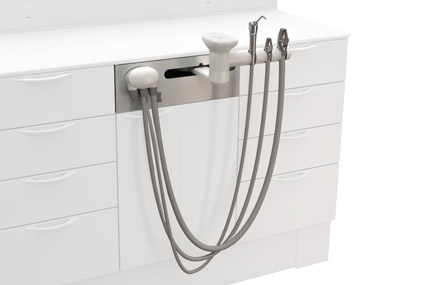

Cabinet mounted assistant's instrumentation
Integrates directly into select A‑dec Inspire dental cabinets to optimize operatory space while delivering full assistant functionality with left/right turret adjustability.
Related products

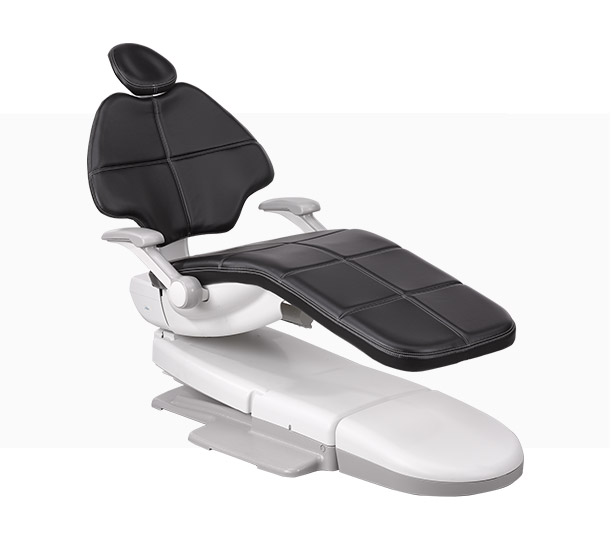

A-dec 500 dental chair
This best-in-class dental chair provides optimal access to the oral cavity and whole body support for the patient.

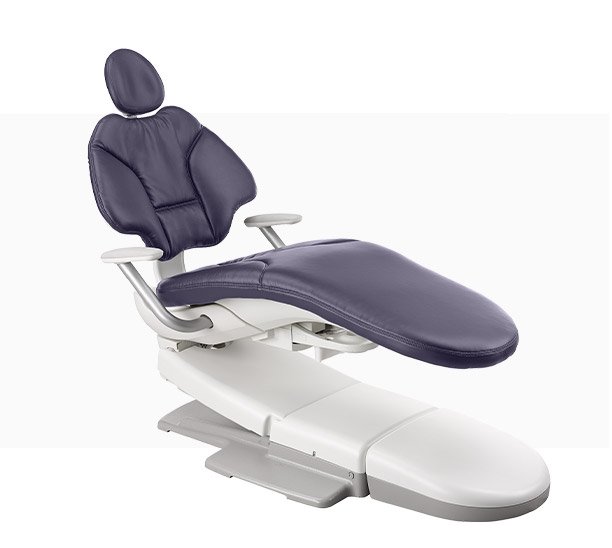

A-dec 400 dental chair
With the robust A‑dec 400 dental chair, you get patient comfort, ergonomic access to the oral cavity, and left/right versatility.

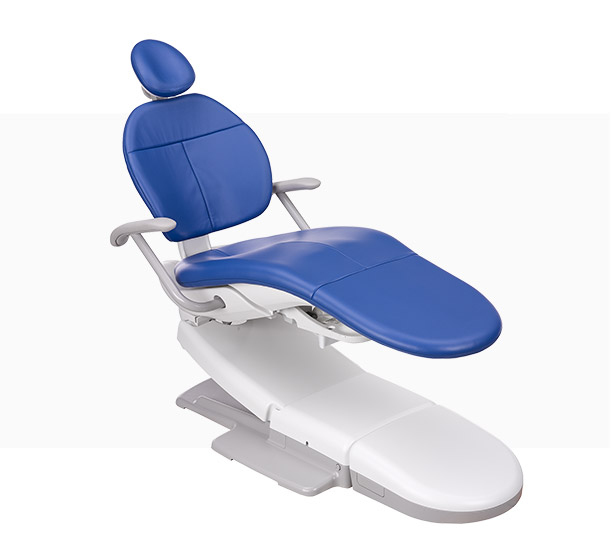

A-dec 300 dental chair
The A‑dec 300 dental chair combines excellent access and minimal maintenance with a design that allows quick and easy patient positioning.
A-dec 400 dental stool
Durable and comfortable, the ergonomic tilt of the A‑dec 400 dental stool helps maintain the natural curve of the back to reduce pressure and strain.
A-dec 300 LED dental light
A value-priced LED dental light that doesn't compromise the consistent 5,000K neutral white color temperature.
A-dec monitor mounts
No matter which option you choose, you and your team will enjoy an ergonomic solution that offers richer patient-staff interactions.

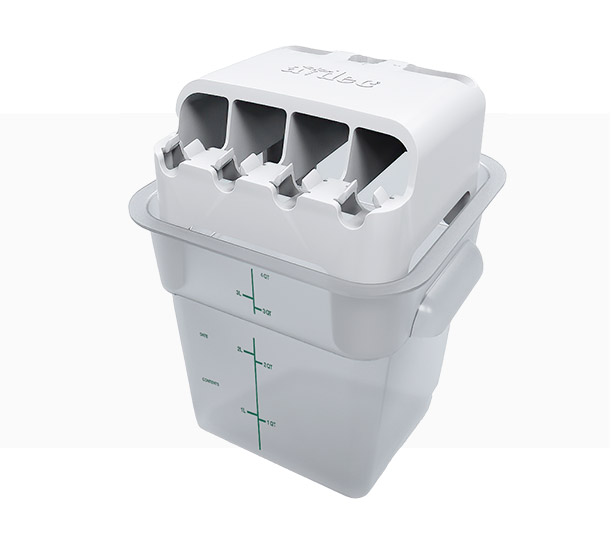

A-dec Flush Dock
Flush, purge, and consistently follow recommended waterline protocol, while leaving your hands free for other important tasks.
A-dec cuspidors
Choose from glass or vitreous china, and fixed or rotating styles. All cuspidors include a timed cup fill and bowl rinse functions.
Saliva ejector
Add to your delivery system for an all-in-one hygiene package. Available only on the A‑dec 300 Pro radius traditional delivery system with manual height adjustment.
Are you ready to explore options?
To ensure you get the best solution for your dental practice, A‑dec offers many dental equipment options. Your A‑dec Territory Manager can work with you to find the solution that's right for you and your dental team.
Resources
Product literature
Support documents
- A-dec 300 Pro Delivery Systems Instructions for Use
- A-dec 341pro/341flt Duo Delivery System Instructions For Use
- A-dec 343pro Cart Delivery System Instructions for Use
- A-dec 300 Support Systems Instructions For Use
- A-dec Quick-Disconnect Syringes Instructions For Use
- A-dec Self-Contained Water System Instructions for Use
- A-dec Waterline Maintenance Guide
- A-dec Equipment Asepsis Guide
- A-dec Equipment Maintenance Checklist
- A-dec Regulatory Information, Specifications, and Warranty
Safety Data Sheets (SDS)
How do I get the benefits of A‑dec+?
To connect your A‑dec 300 Pro delivery system to A‑dec+, you'll need to purchase a delivery system with a DS5 touchscreen, or add the optional A‑dec+ Gateway. Once registered, you will get the benefits of A‑dec+, including synced multi-user settings, analytics, future product enhancements via software updates, and more.
How do I register my delivery system for A‑dec+?
Download the A‑dec+ app on the Apple App Store or Google Play. Learn more.
Am I required to create an A‑dec+ account?
Yes, an A‑dec+ account is required to register your A‑dec+ enabled equipment.
What A‑dec 300 Pro delivery system mounting options are available?
Mounting options for A‑dec 300 Pro delivery systems include chair-mounted (Radius), support center-mounted (mounts to any manufacturer's dental chair that accepts 2" post mount), side-mounted (cabinet/wall), rear-mounted (12 o'clock), or standalone (cart).
What is the warranty for A‑dec delivery systems?
A‑dec proudly offers a 10-year warranty on all new delivery systems purchased from A‑dec or an authorized A‑dec dealer. Refer to the A‑dec, Inc. Express Limited Warranty for more details.
How long should a delivery system last?
With proper maintenance and service, A‑dec delivery systems are designed and tested for a "service life" of 20 years under normal use. The actual service life can be influenced by factors such as environment, extent of use, cleaning and maintenance frequency, and preventative maintenance of normal service "wear & tear" components. Please review A‑dec's customer warranty for complete details, including applicable disclaimers and limitations of liability.
What is the cost of an A‑dec dental delivery system?
Because you can customize your delivery system with many different equipment options, costs may vary. Request a quote from your local A‑dec dealer.
How do you order A‑dec replacement parts for your delivery system?
You can browse our selection of A‑dec delivery system parts. To order replacement parts, please contact your local A‑dec dealer.
